Altera DE2-115
Learn Hardware design with FPGAs using DE2-115
- Codeide
- Real-time labs
- University & College
Laboratory information
Learn Hardware design with FPGAs using Terasic DE2-115!

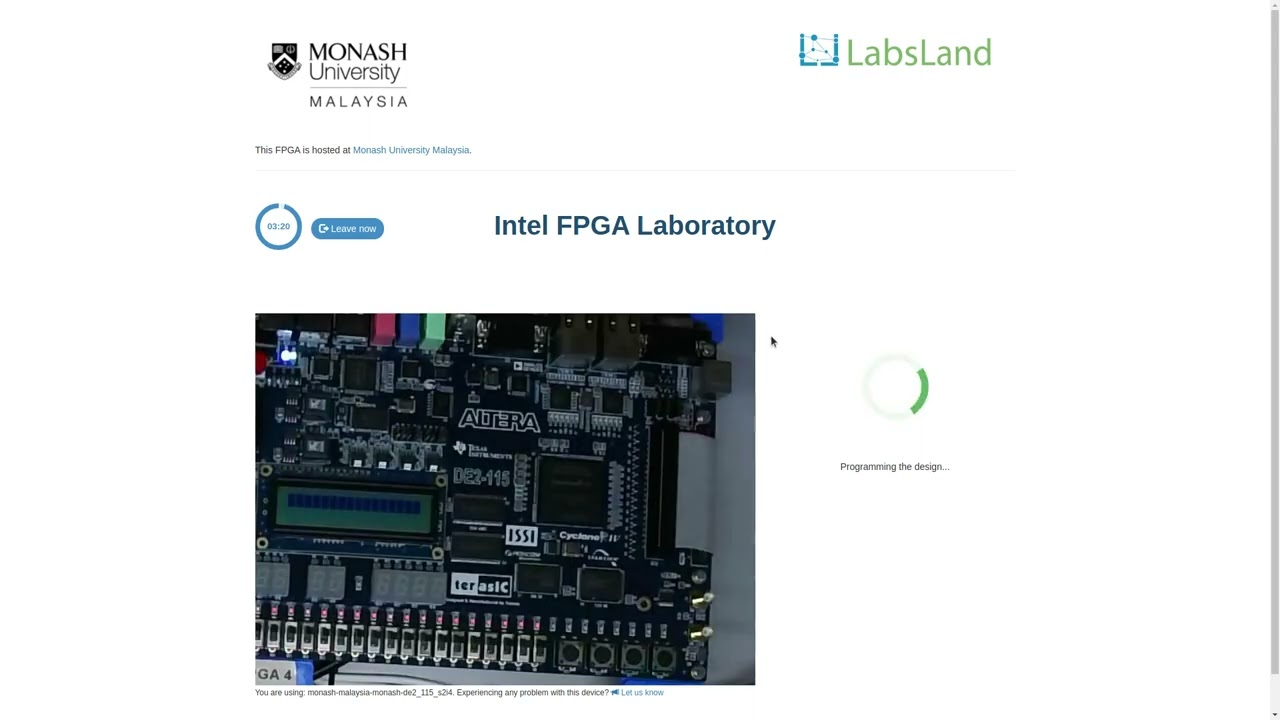

In this laboratory, you can learn how to program using two Hardware Design Languages: VHDL or Verilog, and test your code in a real Terasic DE2-115 FPGA. The FPGA has a set of components already place, such as 18 red LEDs, 9 green LEDs, 8 7-segment displays, multiple clocks. In addition, you will have access to 18 virtual switches and 4 virtual buttons that you can use in your design and that you will see when interacting with the real hardware. This way, you will be able to turn on and off the switches or press the buttons and see how your design behaves. The boards are located in different universities, as you will see when using each board.
In this laboratory, you do not need any software or hardware installed in your computer, tablet or phone.
What students do
Operate real equipment and reason from the measurements.
- Recommended level
- University & College
- Typical access model
- Codeide, Real-time labs
- Works on
- Modern web browsers on school, university, and home computers.
- Teaching use
- Suitable for assignments, demonstrations, LMS-linked activities, and remote practical work.
Video
Available experiments
Use the real laboratory from the browser.
DE2-115 IDE Verilog
Program Altera FPGA DE2-115 in Verilog
Teaching resources
Public laboratory contents
Adapting external codes
How to adapt external VHDL or Verilog codes or external practices to the LabsLand FPGA laboratory
Open resourceIntroduction to LabsLand FPGA. Simple combinational ALU.
Introduction to the LabsLand FPGA laboratory. Activity that involves the design of a combinational ALU that makes simple arithmetical operations.
Read more
Through this activity the following goals will be met:
- Learn how to use the LabsLand FPGA lab.
- Learn how to design entities that are reusable through components and port mapping.
- Learn how to use elementary input-output peripherals (switches, buttons, 7-segment displays).
- Learn basic combinational system concepts.
- Learn how to design a simple ALU, that makes simple airthmetical operations.
- Learn how to use "resize", type conversions and other VHDL characteristics.
RHL Beadle
80+ pages of contents on how to use the FPGA laboratory, Boole Designer, Digital Trainer
Open resourceIntroduction to LabsLand FPGA. Simple combinational ALU. (SOLVED).
Introduction to the LabsLand FPGA laboratory. Activity that involves the design of a combinational ALU that makes simple arithmetical operations.
Read more
(This is the solved version of this practice. The not-solved version is a different version of this practice).
Through this activity the following goals will be met:
- Learn how to use the LabsLand FPGA lab.
- Learn how to design entities that are reusable through components and port mapping.
- Learn how to use elementary input-output peripherals (switches, buttons, 7-segment displays).
- Learn basic combinational system concepts.
- Learn how to design a simple ALU, that makes simple airthmetical operations.
- Learn how to use "resize", type conversions and other VHDL characteristics.
